Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Lever |
| Body Style | Ultra-Miniature |
| Case Material | Phenolic |
| Contact Form | SPDT |
| Contact Material | Silver Alloy |
| Current Rating | 15 A |
| Dielectric Strength | 1000 VAC |
| Force, Operating | 8.8 to 12.3 Oz. |
| Material, Casing | Phenolic |
| Material, Spring | Beryllium Copper Alloy |
| Mounting Hole Size | 0.14 " |
| Number of Poles | 1 |
| Operating Force | 8.8 to 12.3 Oz. |
| Operation | Snap Action |
| Series | |
| Special Features | Heavy Duty |
| Standards | UL Listed |
| Temperature Rating | -20 to 85 °C |
| Termination | Screws |
| Type | Basic |
| Voltage Rating | 250 VAC |
Overview
CHERRY switches and sensors are now ZF Electronics switches and sensors.

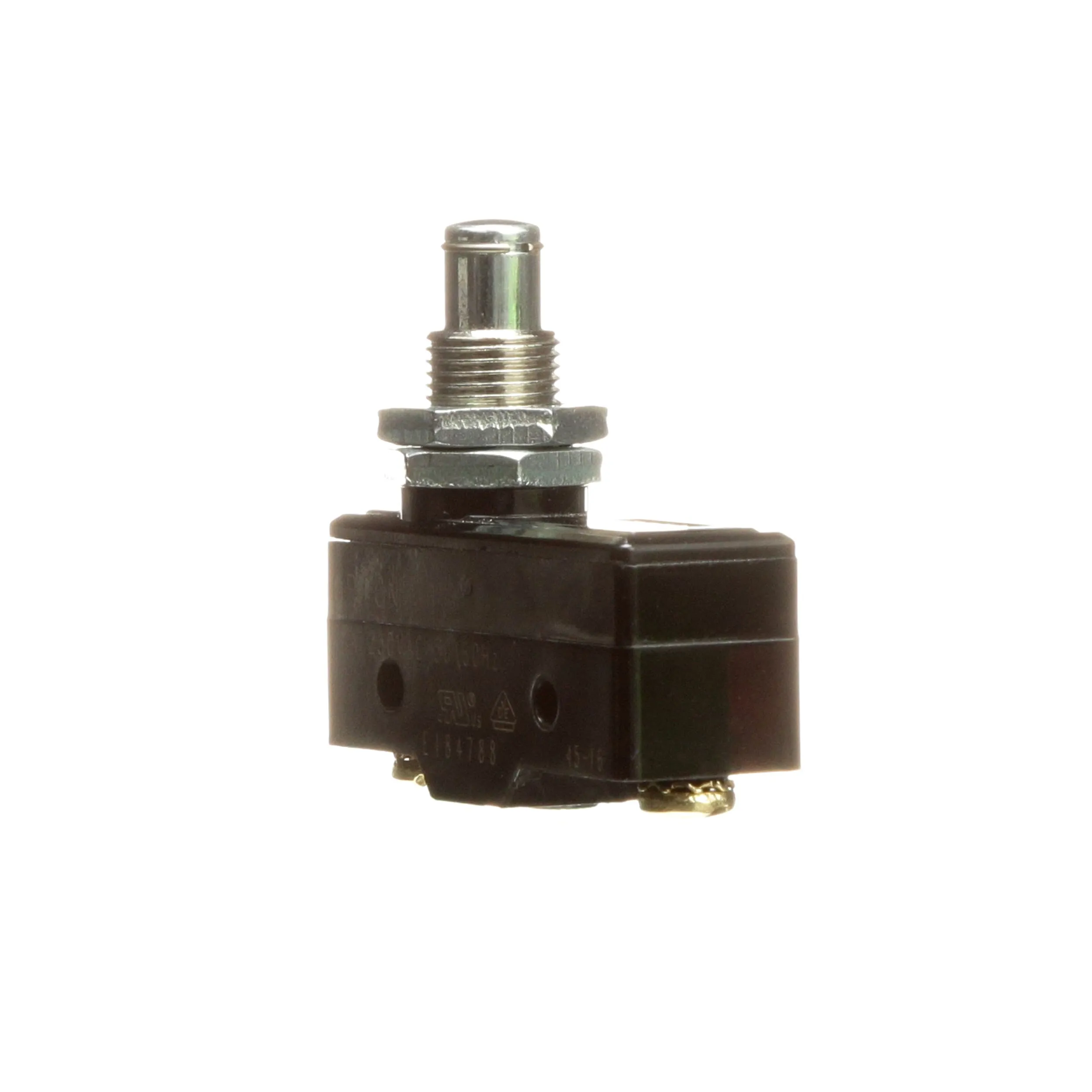

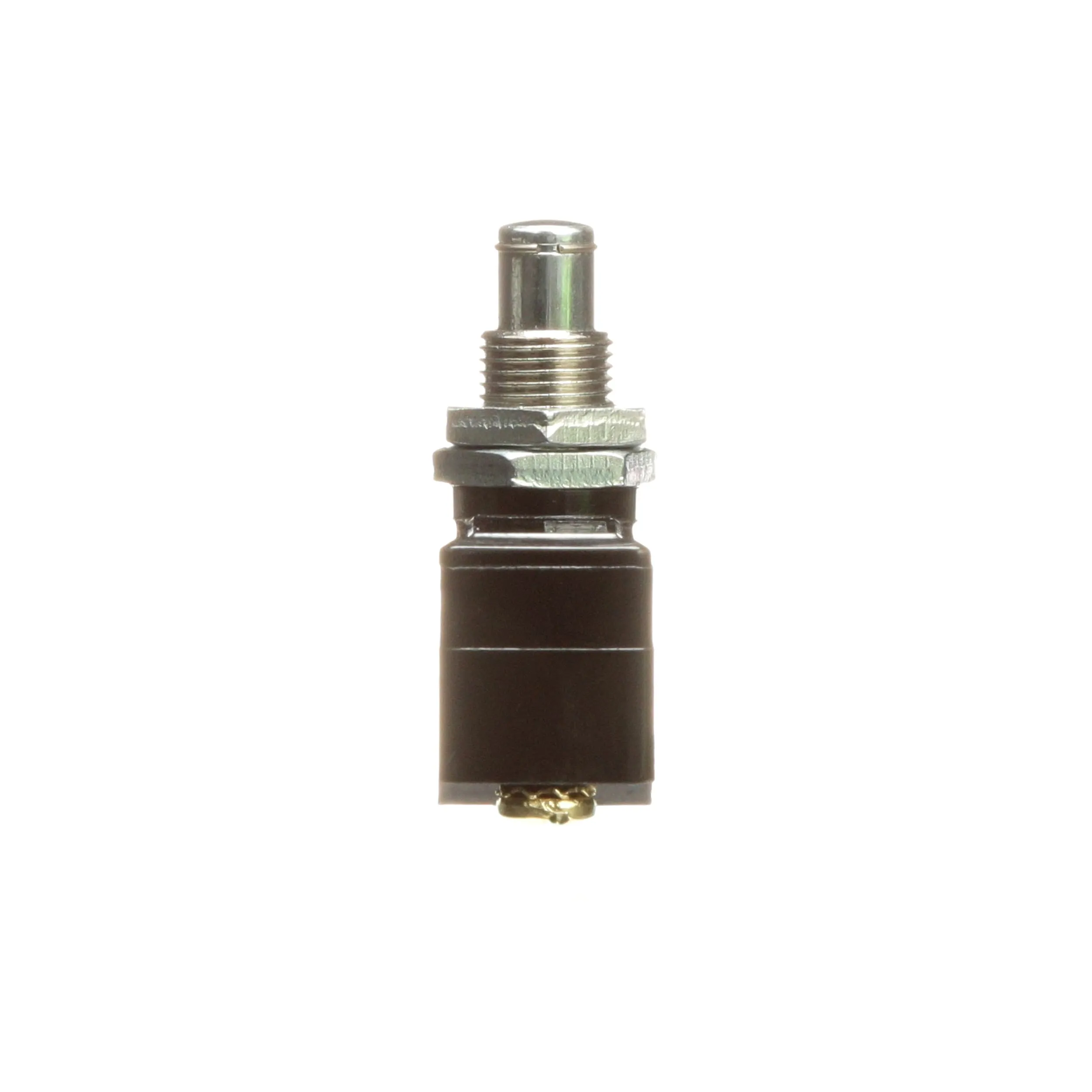

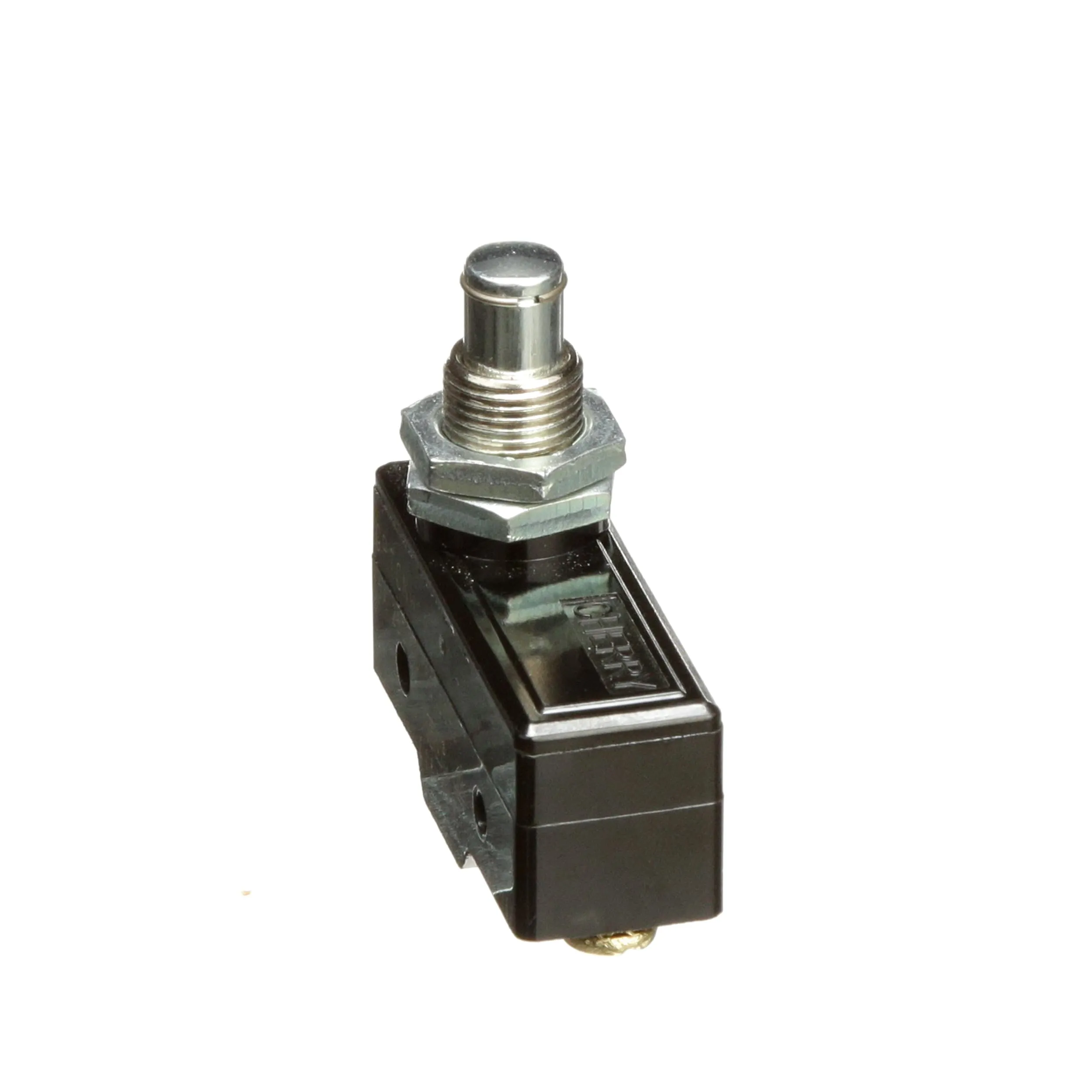

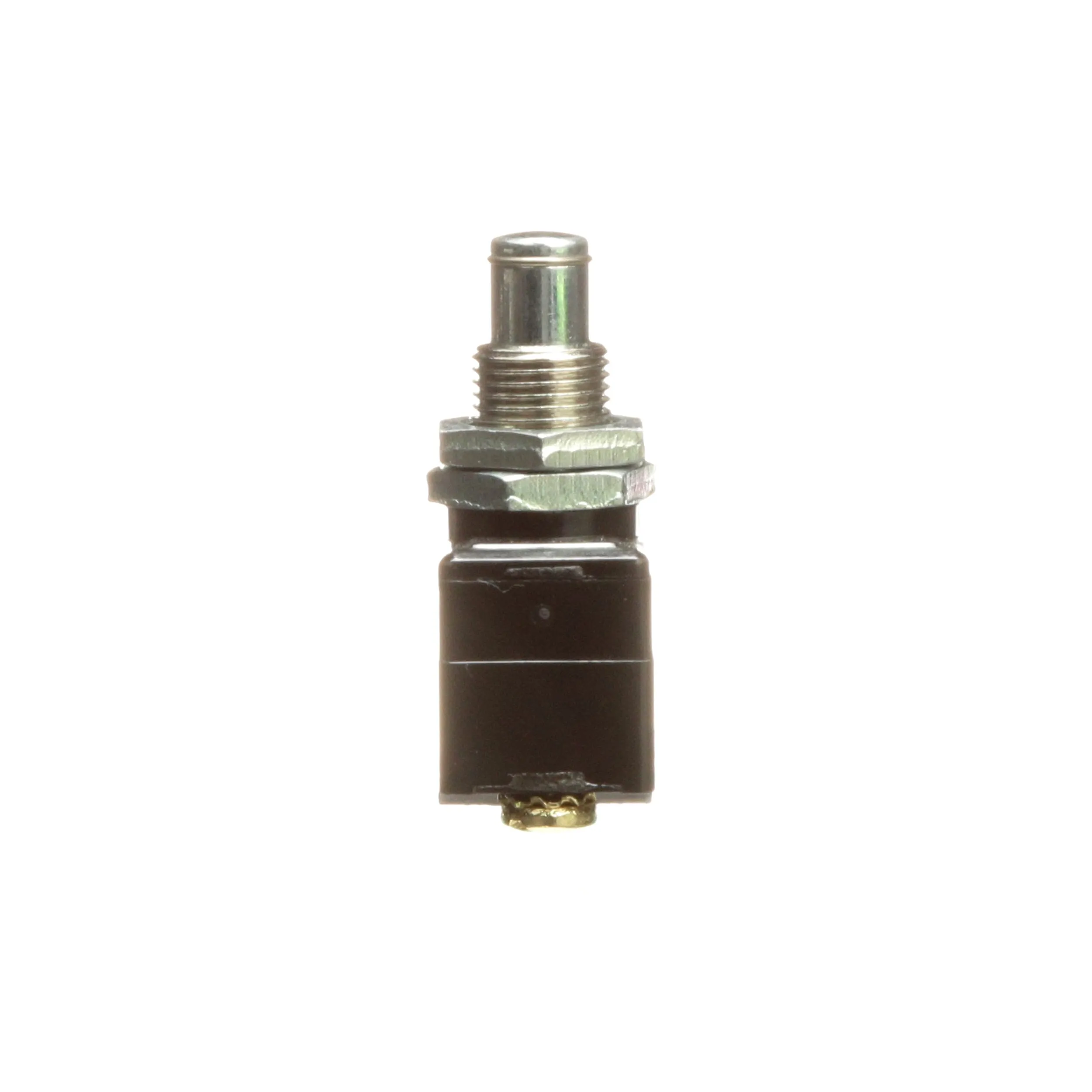

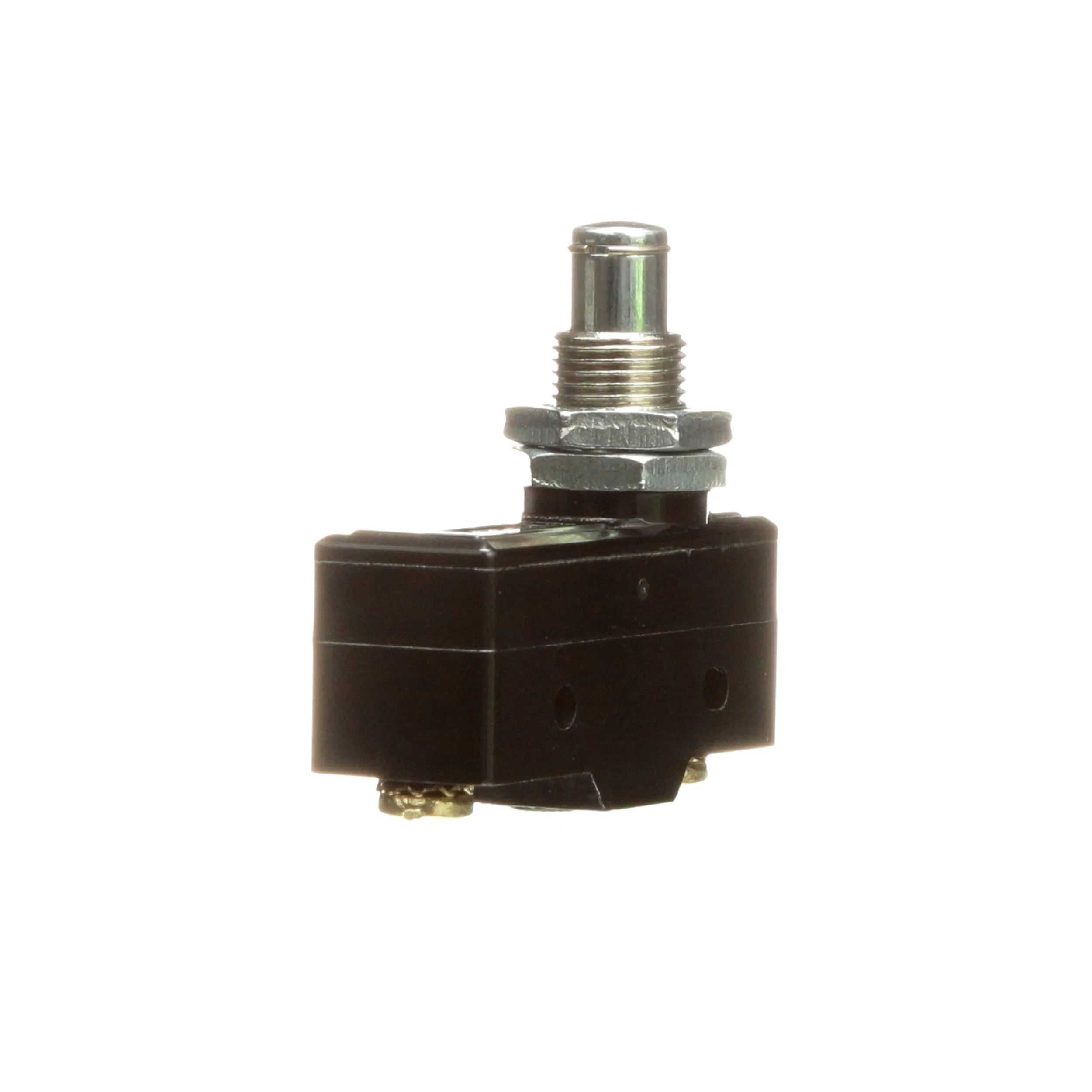

GP Series heavy-duty snap action switches fit a variety of equipment position sense functions from panel mounted plungers to bracket mounted leaf levers. Brass screw or copper alloy solder terminals available.
