Convert your Trident Trike Stowaway to Electric!

Extras Included:

Pedal-Assist Extension Cable
Locking Parking Brake Levers
Please note that the Universal Battery Mount is not offered as an add-on for this specialty conversion system. For this system, the configuration may vary, so if you need the Battery Mount, please visit the and add it to your cart separately.

* Newer Trident models use external bearing bottom-brackets that require special considerations and parts for fitting PAS sensors and magnets. Contact us with questions. The default configuration is our normal left-side mount PAS system for square-taper bottom brackets. Please contact us and send pictures if you have an external bearing crankset and we can arrange special parts for you like in the photo below. Not sure? Check out .

Newer models with external bearing cranksets, use: PAS 12 magnet Split 64/74 BCD and right side PAS sensor (Cut the mounting legs off the sensor as shown here to make more clearance:

The mountain bike bar-end allows mounting the throttle near the bar-end shifter but keeps the derailleur cables from interfering with the throttle:

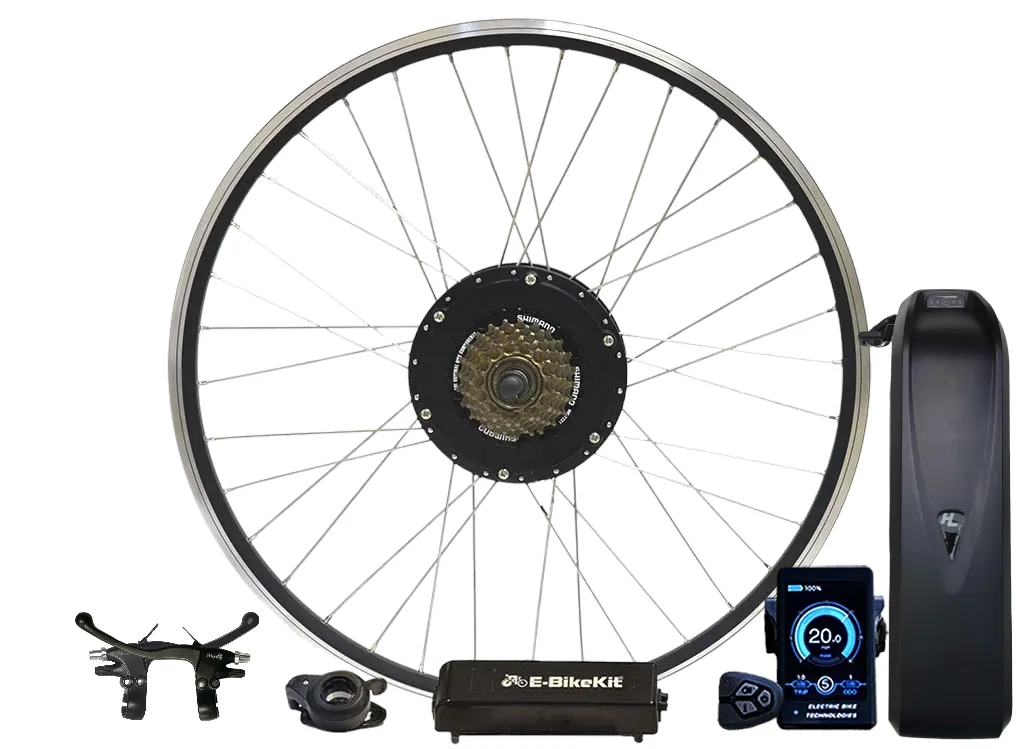

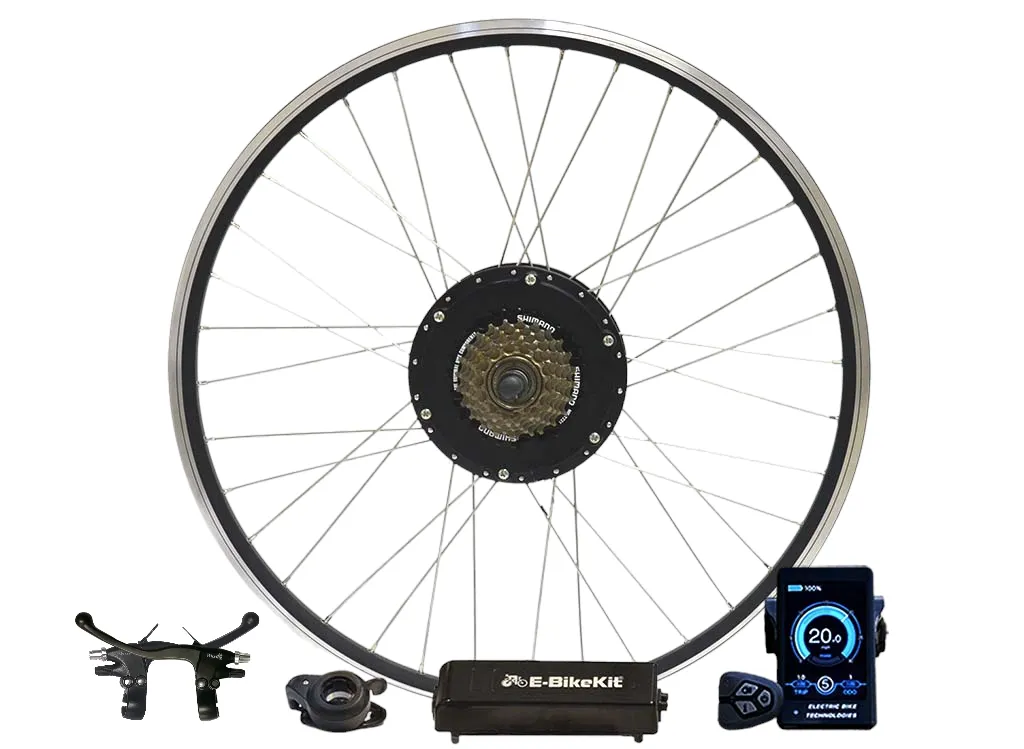

E-BikeKit Rear 500w Geared Hub Motor Conversion Kit with 48 volt Li-Ion Battery Pack and Charger.

The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs lighter than the 500w direct drive.

Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 26 mph! There is a 300 lbs total load limit so if you plan on more than that, look to a heavy duty system.

Learn More: | | |

Helpful Resources: |

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Questions? Call us toll-free at and an experienced professional can assist you. Monday – Friday 9 am - 5 pm EST. Outside of business hours get help fast via .

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Motor Specs:

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (Brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 84Nm @ 48v (up to 48v w/ 300 lbs max load)
Max RPM: 320 @ 48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4 lbs (4.26 kg)
Warranty: 1 Year

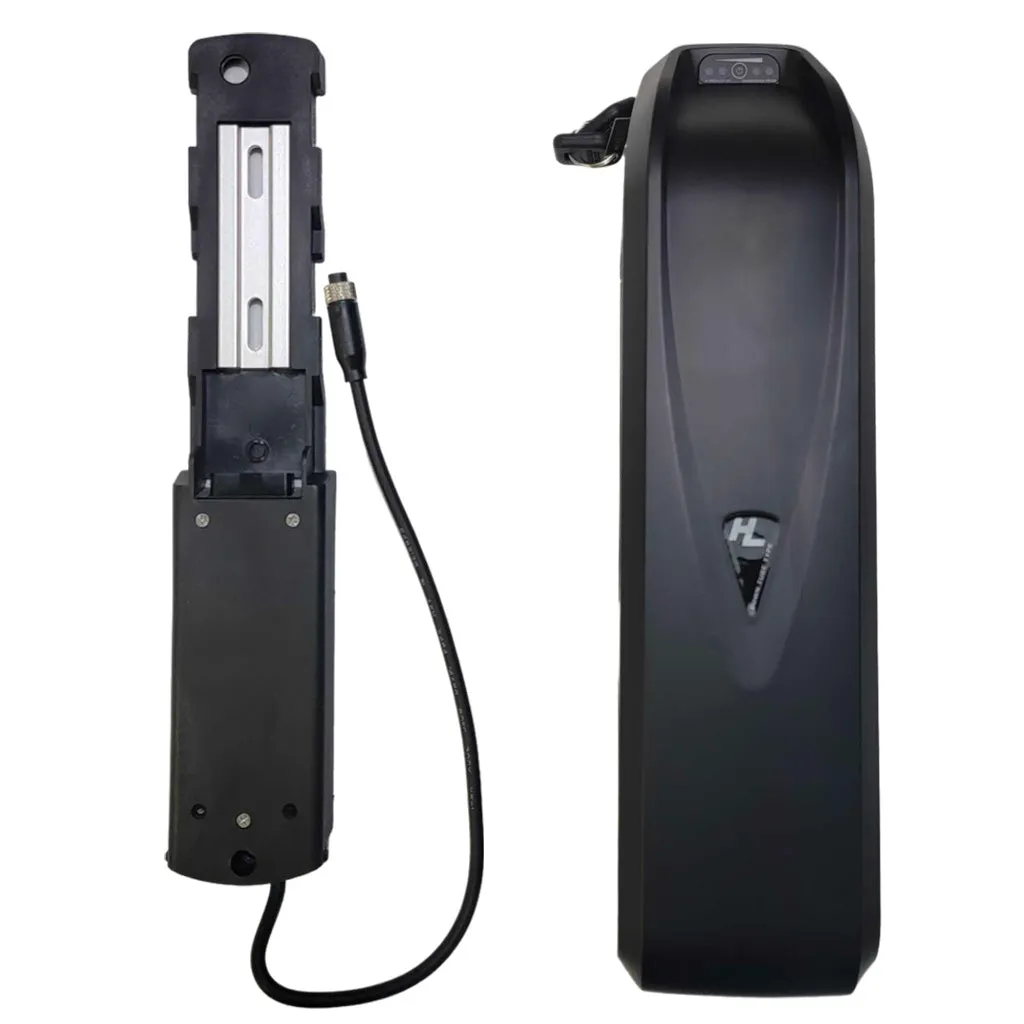

Battery Specs:

Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS

Includes

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (Right side mount by request only)
1 x Thumb Throttle
1 x Left and Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (Only included w/ no battery kits)
1 x Freewheel
1 x Battery
1 x Battery Charger
1 x (An online PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!
