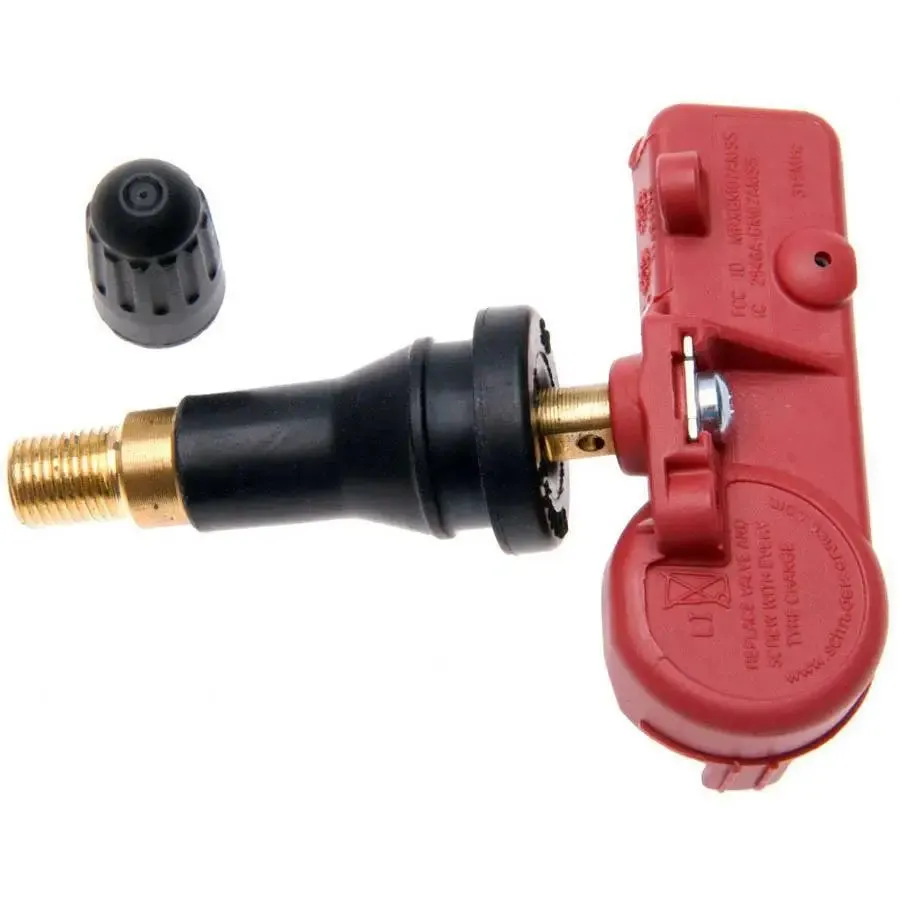

Product Details
＋
Schrader TPMS Replacement Valves meet OE quality and performance specifications. Scharder TPMS sensors measure tire pressure and temperature. Scharder offers a growing range of replacement sensors that are designed for specific vehicle makes, models and year. Transmitters are make and model specific, consult the application guide to determine the proper replacement. Replacement transmitters and valves must be torqued with a specific torque wrench. Please refer to the application guide to determine the specific torque value.
Specifications
- Part Source: Schrader International
- Frequency: 315 MHz
- Torque Nut: None
- Torque Screw: 1.4Nm - 12in-lbs
- Torque Core: 0.5Nm-4in-lbs
- FCC ID: MRXAS1MAF4
- Housing Color: Red
- Sensor Type: Snap-In
- Part Design: 2 Piece
- Valve Material: Rubber
- Shape: 6 - Snap In
- IC Number: 2546A-AS1MAF4
- Manufactured By: Schrader Electronics
- Sensor ID Length: 8 Digits
- Sensor ID Type: Hex Decimal
Application:
- Ford; E450 Super Duty; 2010
- Ford; E Series Van; 2012-2011
- Ford; E Series Van; 2010; W/ Steer Wheels
- Ford; Edge; 2012-2011
- Ford; Escape; 2012-2009
- Ford; Expedition; 2012-2011
- Ford; Explorer; 2012-2011
- Ford; F
