Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Minature Socket |
| Alternate Mfr Part Number | XQ-545-RS |
| Color | Blue |
| Connector Size | Miniature |
| Connector Type | Panel Mount |
| For Use With | T Type Thermocouple |
| Housing Color | Blue |
| Maximum Operating Temperature | 220 °C |
| Minimum Operating Temperature | -35°C |
| Mounting Type | Stainless Steel Bracket |
| Operating Temperature, Maximum | 220 °C |
| Operating Temperature, Minimum | -35°C |
| Shop By | Factory Choice |
| Standards | ANSI |
| Thermocouple Type | T |
| UPC Code | 5056112131847 |
Overview

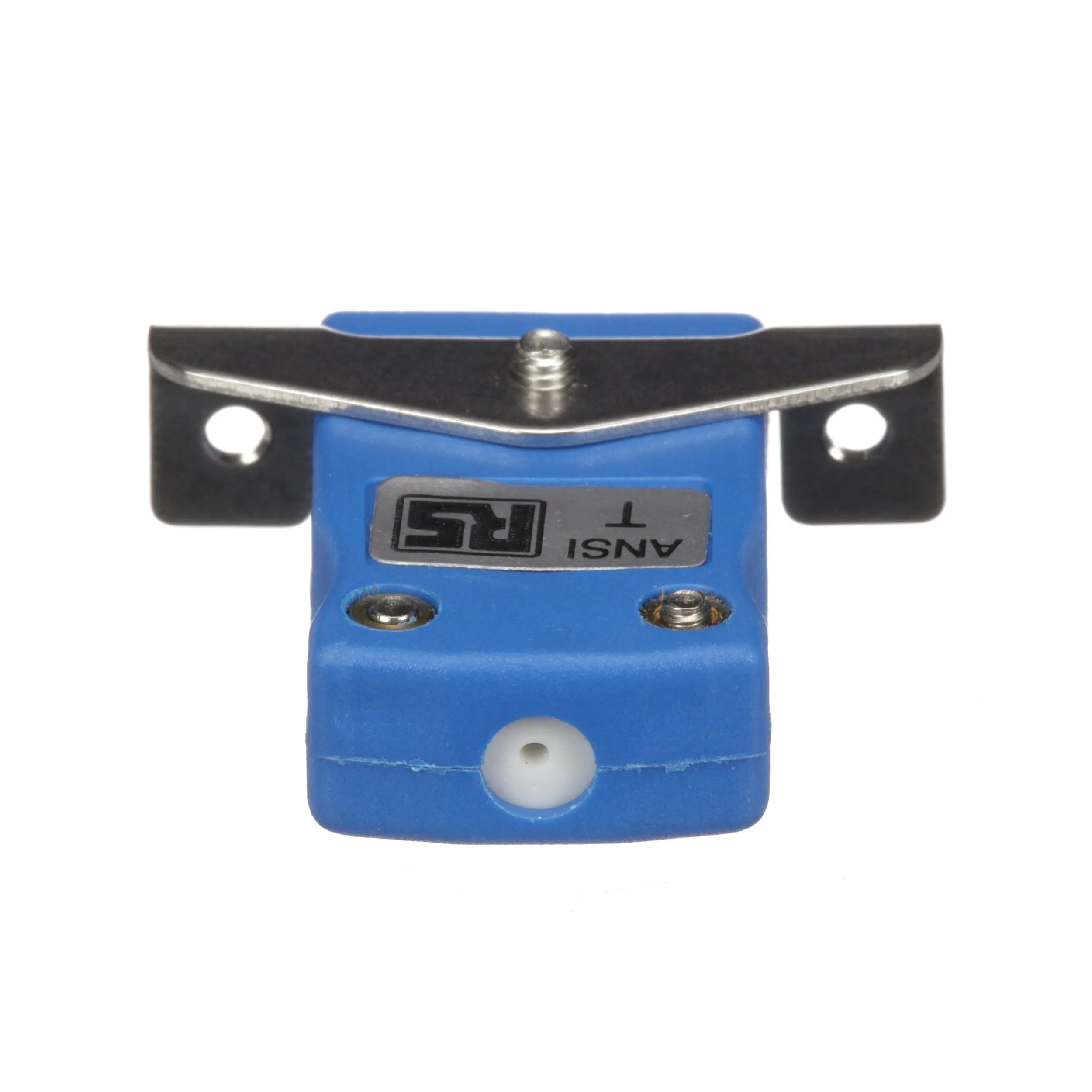

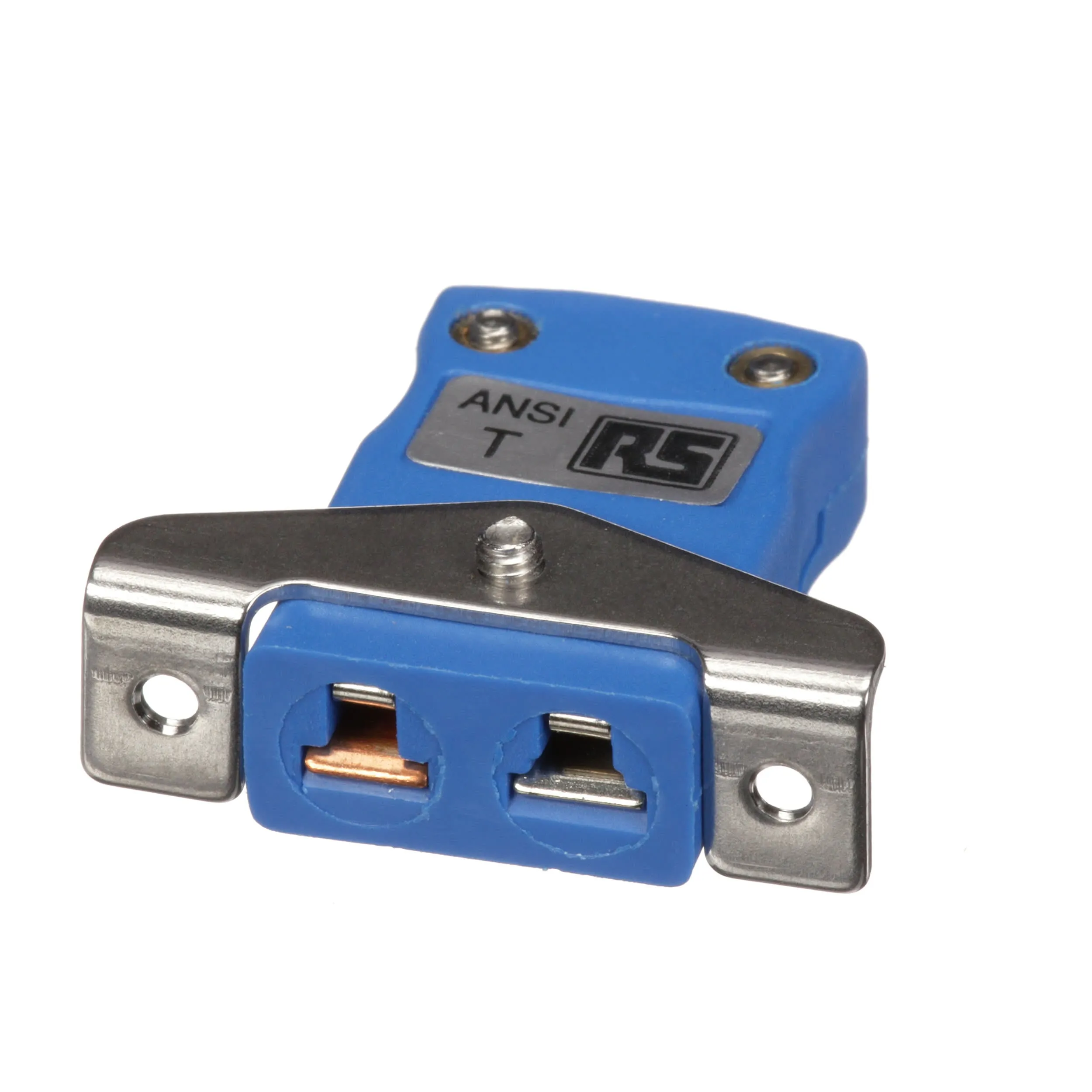

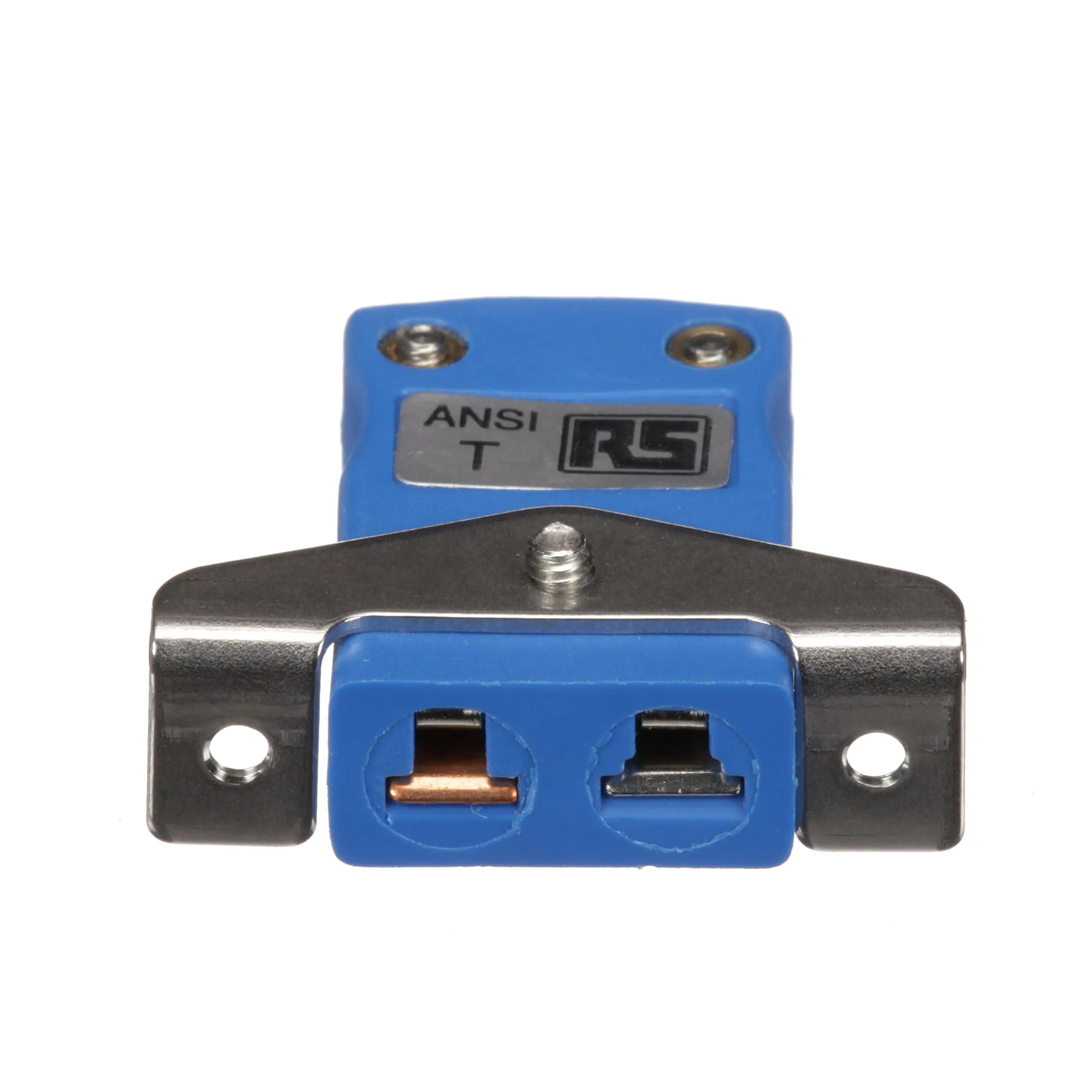

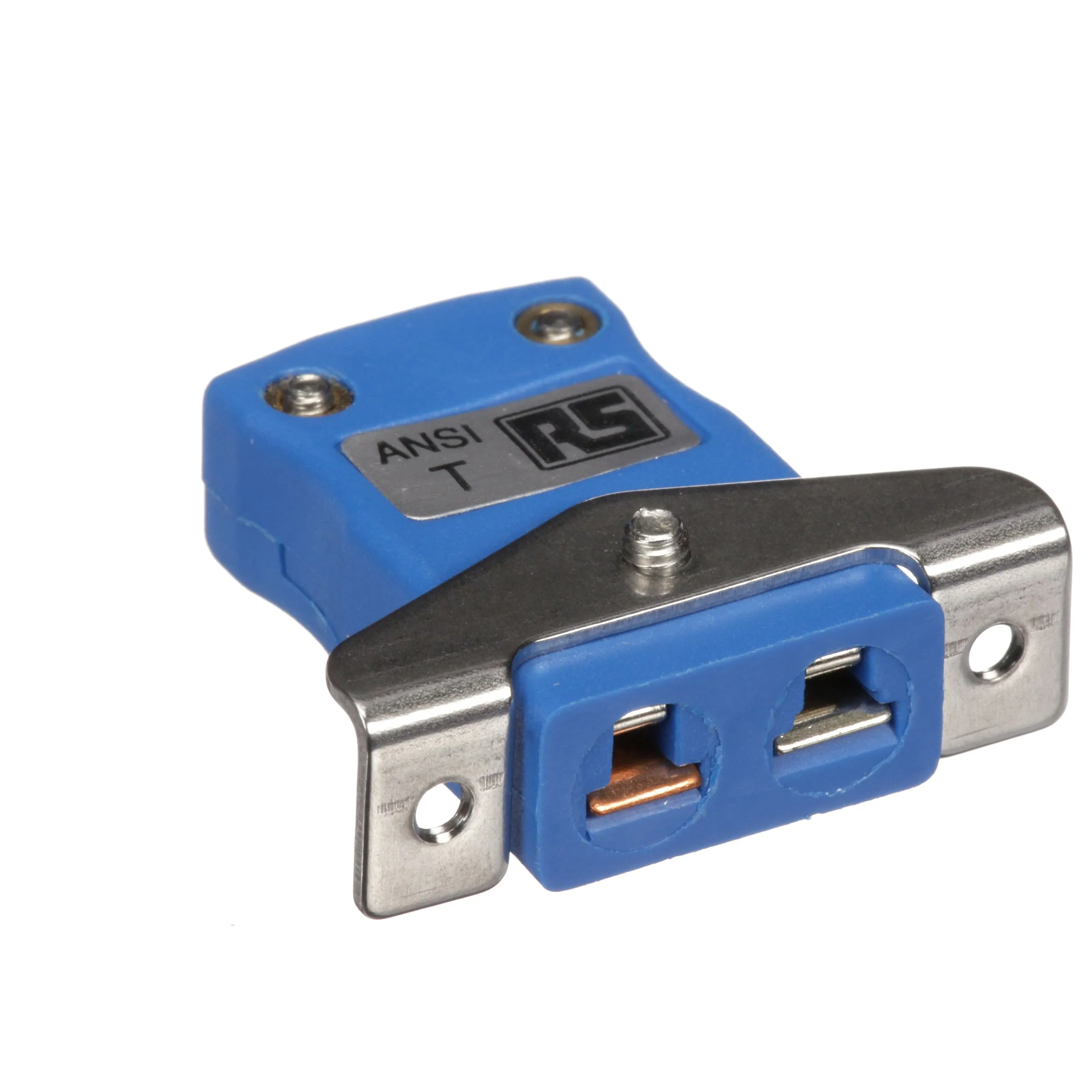

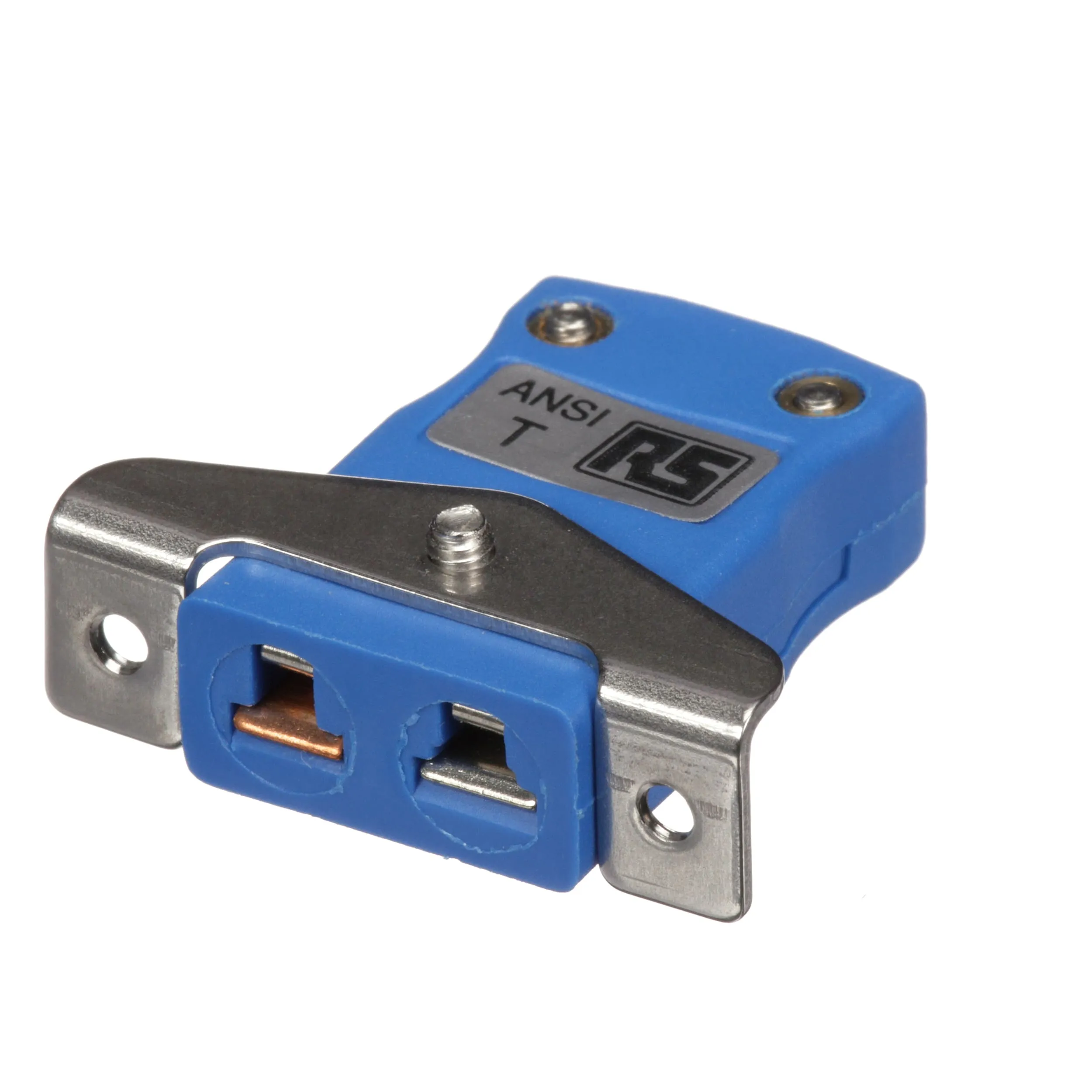

Miniature Thermocouple Sockets
The miniature in-line thermocouple sockets with stainless steel panel mounting bracket are available in thermocouple types K, J, T, E, N, R/S and B.
Contacts are polarized to ensure correct connection
Contacts are polarized to ensure correct connection
Suitable for use with RS range of Aluminum faceplates
Color coded in accordance with ANSI specification
