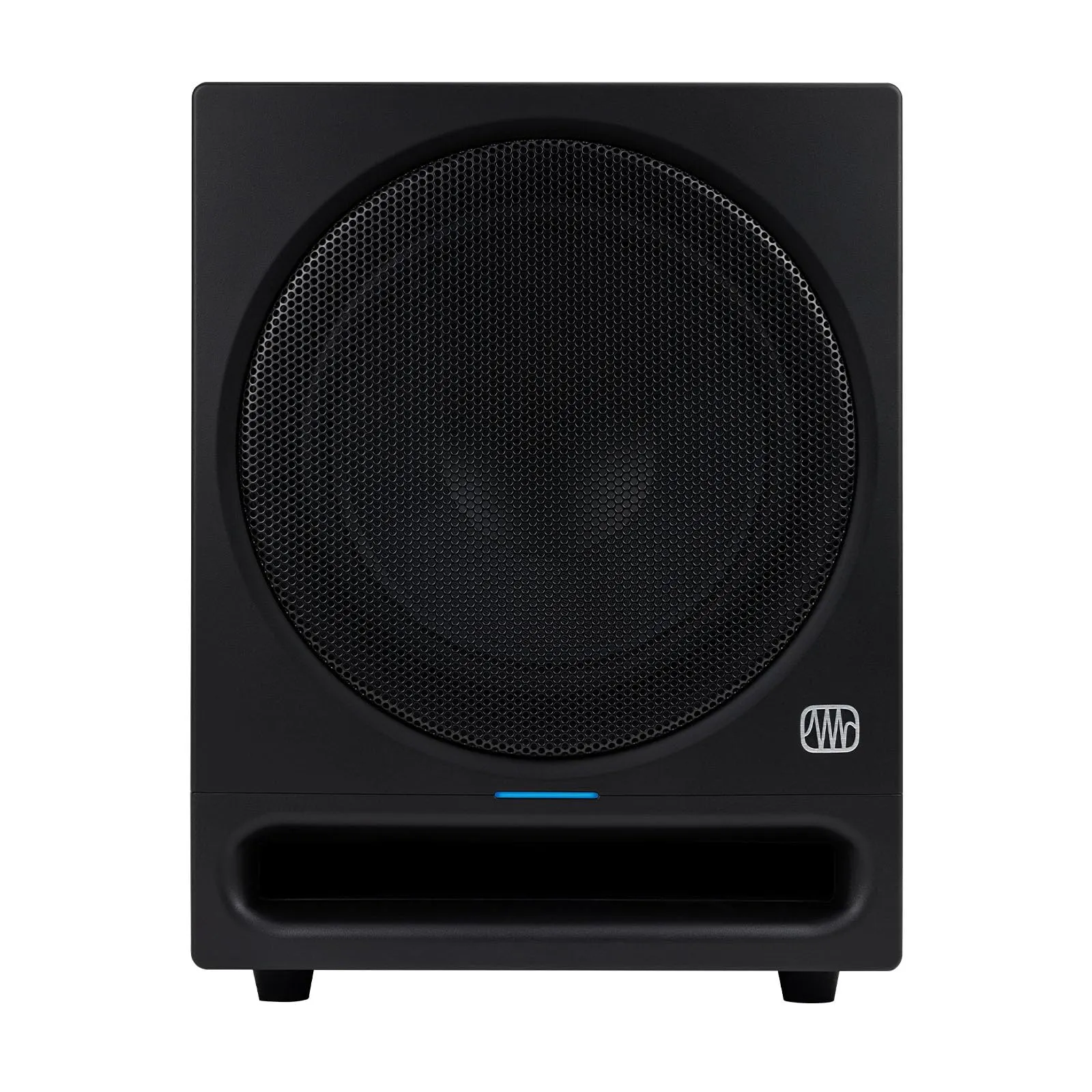

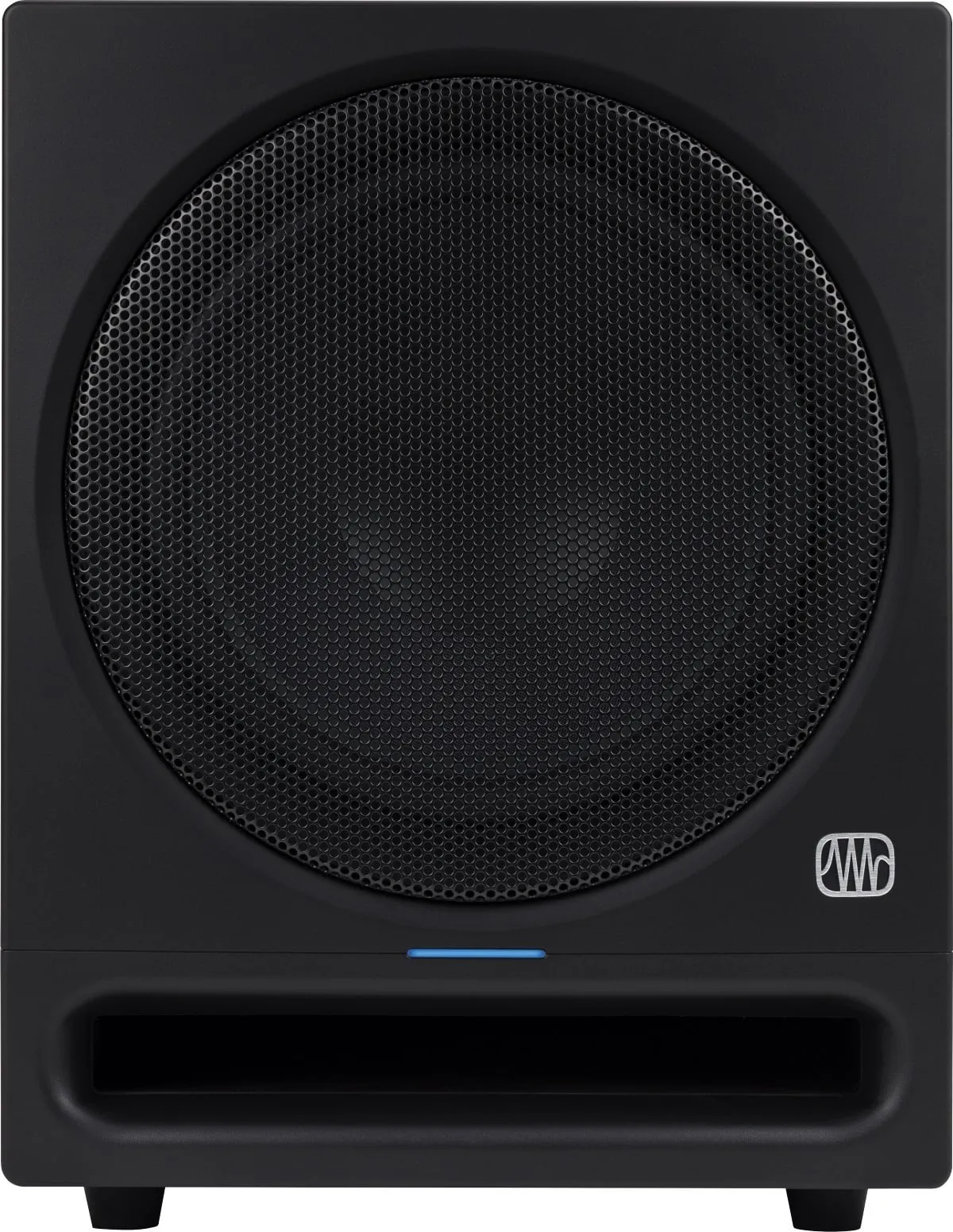

PreSonus Eris Pro Sub 10 Powered Studio Subwoofer
Key Features
- 10" Front-Firing Composite Woofer
- 20 to 200 Hz Frequency Response
- 113 dB Maximum Peak SPL
- 170W RMS of Class-AB Amplification
- Variable 50 to 130 Hz Low-Pass Filter
- Polarity Switch: 0 or 180°
- XLR, 1/4" & RCA Inputs, XLR, 1/4" Output
- 80 Hz High-Pass Filter Switch on Outputs
- Includes Subwoofer Bypass Footswitch
Expand the frequency range of your personal/professional music production studio with the PreSonus Eris Pro Sub 10, a front-firing 10" active subwoofer that's an ideal companion to the Eris Pro and Eris Studio series reference monitors, as well as any set of full-range studio monitors. The subwoofer compliments your monitors without overshadowing them and extends the reach of your full-range system's low end with a more musical and natural approach.
The Eris Pro Sub 10 utilizes a 170W Class-AB amplifier to power the 10" composite woofer, which offers a frequency response from 20 to 200 Hz and a max SPL of 113 dB. The rear panel has a comprehensive set of controls to fine-tune the subwoofer's performance, including input gain, continuously variable low-pass filter for creating a seamless crossover transition, and a switchable high-pass filter that removes content below 80 Hz from the full-range signal sent to the monitors. A subwoofer bypass switch and power cord are included.
- 10" front-firing, glass-composite, low-frequency transducer
- Bass-reflex acoustic port
- Continuously variable lowpass filter (50 to 130 Hz) sets the upper frequency reproduced by the subwoofer
- Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors
- Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
- Input gain control (-30 dB to 6 dB, continuously variable), polarity invert switch, and ground-lift switch
- 170-watt (RMS), Class-AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz
- Left and right, balanced XLR and ¼" TRS and unbalanced RCA main inputs
- Left and right balanced XLR and ¼" TRS outputs and XLR subwoofer output for connecting a second Eris Pro Sub 10
