Product Details
＋
The S8 Miniature 10,000 ppm (1%) Sensor 004-0-0013 (formerly known as SE-0119) is designed to be used as a safety switch for indoor fresh air control and alarm applications like portable heaters or fresh air ventilation in cars.
Features
- Low Power, Small Footprint Design
- Individually Calibrated
- Automatic Background Calibration (ABC)
- Industry-Standard UART Communication
Models

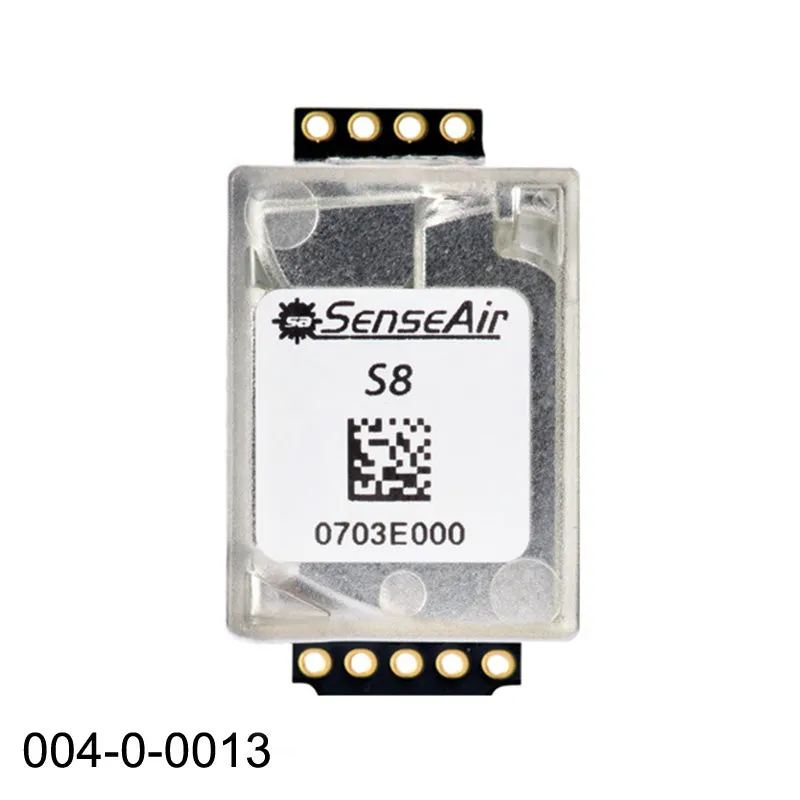

- 004-0-0013: S8 10,000 ppm CO2 Sensor - pinless design for integration into high-volume OEM products. for wholesale pricing on large quantities of this sensor.

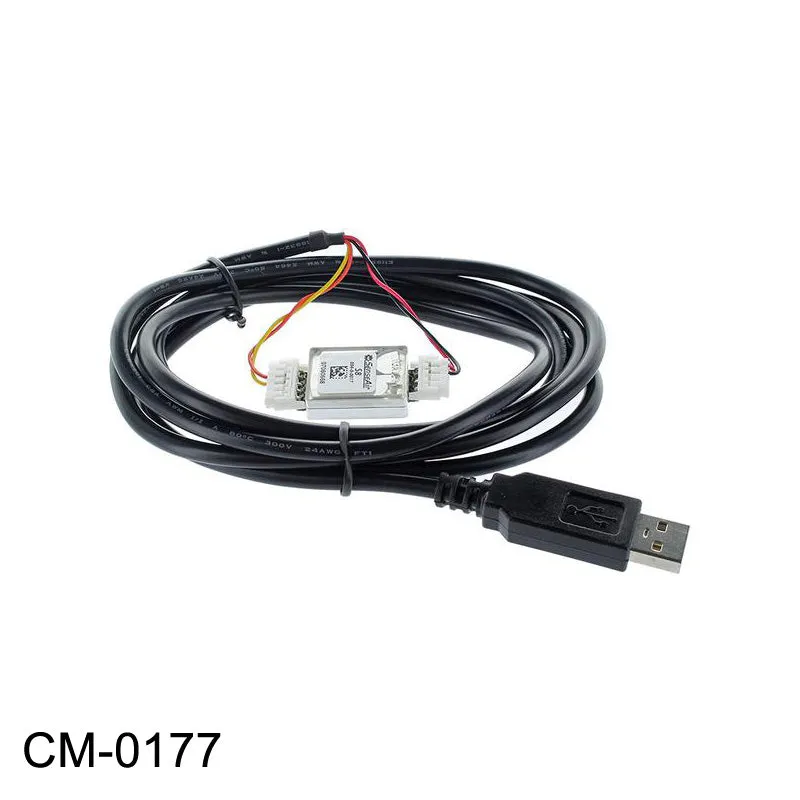

- CM-0177: S8 10,000 ppm CO2 Sensor Development Kit - for wholesale pricing on large quantities of this product.
- CM-200: Sensor Development Kit - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free to measure and graph carbon dioxide or use our to build your own application or for OEM batch testing/configuration. Order the sensor(s) on this page, then .
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: diffusion
- Measurement Range: 0-10,000 ppm
- Response time: 90% at 2 minutes
- Measurement Interval: 0.5 Hz (every 2 seconds)
- CO2 Accuracy: ± 70ppm ± 3% of measured value
-
Operation Temperature: 0 to 50°C
- Communication Options: UART (Modbus)
- Available Output: analog
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check on startup
- Dimensions: 32.7 × 19.7 × 8 mm (L x W x H)
-
Alarm Output: Open > 1,000ppm, closed < 800ppm
- Weight: <8 grams
- Sensor Life Expectancy: > 15 years
Electrical / Mechanical
- Power Input: 4.5V - 5.25 VDC
- Max Current: 300 mA
- PWM output: 0 to 100% duty cycle for 0 to 2,000 ppm
- Power Consumption: 300mA peak, 30mA average
Warranty
- 90 days - See
Accessories
- designed to provide customers with an easy drop-in solution. Includes our free . Sensor sold separately.
